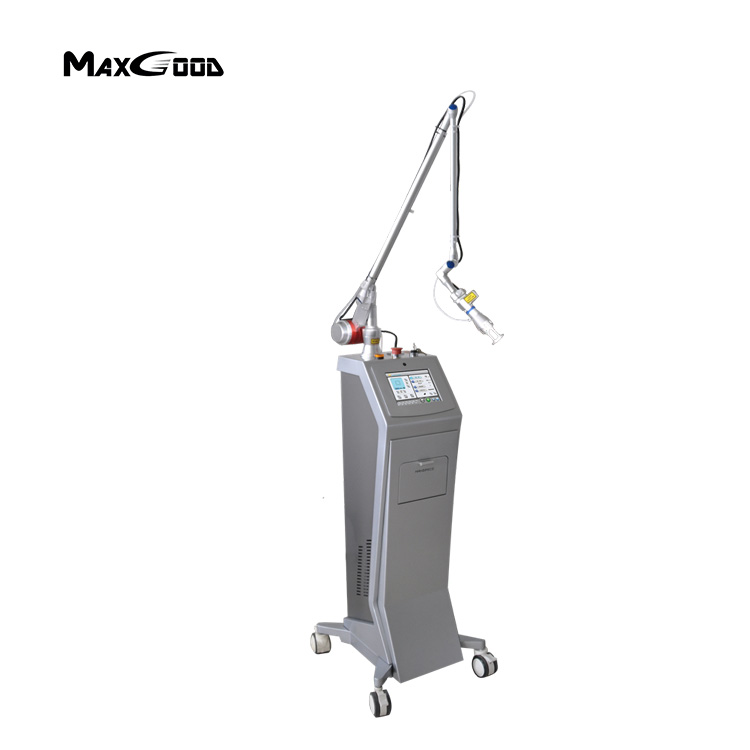

Professional multifunction fractional co2 laser vaginal tightening machine/acne scar removal

10600-MG05

OVERVIEW:

1.Laser wavelength 10.6μm
2. Laser output mode:
Routine operation (Non-scanning): Continuous, Single pulse, Repeat pulse,Super pulse
3.Laser scanning output (with-scanning): Output shapes are Square, Rectangular, Round, concentric circles, and Oval. Single maximum scanning area: 20×20mm2
4. Output power:
5.Continuous output: 0.3 W, 0.5W, 0.8W, 1W~25W step by 1W
Single pulse/Repeat/Super pulse: 0.3W, 0.5W, 0.8W, 1~15W step by 1W
6.Scanning mode: 10-160mJ/Pulse, step by 10mJ
7. Cooling system: Closed internal recycling water cooling
8.Aiming beam: Red semi-conductor laser, with wavelength of 650~670nm, Power ≤5mW

Professional multifunction fractional co2 laser vaginal tightening machine/acne scar removal


Specification  :

Wavelength:

10600nm

Laser output mode:

Routine operation (Non-scanning): Continuous, Single pulse, Repeat pulse, Super pulse

Laser scanning output (with-scanning)

Rectangular, Round, concentric circles, and Oval

Aiming beam

Red semi-conductor laser, with wavelength of 650~670nm

Beam transport device:

Articulated arm with 7-joint and balance weight

Continuous output:

0.3 W, 0.5W, 0.8W, 1W~25W step by 1W

Scan scope:

Max 20mmx20mm2(Normal handpiece)

Single pulse/Repeat/Super pulse:

0.3W, 0.5W, 0.8W, 1~15W step by 1W

Cooling system: Closed internal recycling water cooling

Scanning mode

 10-160mJ/Pulse, step by 10mJ











Introduction:

CO2 fractional laser cosmetology system provides the most effective way to treat and improve skin condition, focusing on the wrinkle, acne, acne scars, frostbite scars, chloasma, slack skin and lighting aging skin. The ordered cylinder shaped aperture with high energy contracts skin in a few minutes, which improve the skin effectively and promote the generation of the new collagen in the deep layer.


Therapy Principle:

This system adopting the scanning dot-matrix irradiation method, can form an focal zone composed of laser action points and lattice spacing on the epidermis, each laser action points is composed by a single or more high-energy laser pulse. The laser action points can directly reached to the dermal layer and forms cylinder shaped aperture. The laser can stimulate the proliferation and promote the restricting of the collagen. The contraction of the cylinder shaped aperture will obviously improve the skin voluptuous. Skin becomes smooth, elastic and gets a qualitative improvement.


Therapy Characteristics:

★ This cosmetology system adopted advanced super pulse emission technology which can acts upon the skin in a very short time. Patients only feel light Tingling sensation, no bleeding.

★ The diameter of each laser action point (ablated point) is less than 0.1mm, with little trauma, and will recover quickly. As the main treatment area remains intact during operation, the patients can use cosmetics on the second day after the treatment.

★ A whole facial treatment can be completed within 20~30 minutes by using this cosmetology system and doesn’t need particular vacation or rest after the treatment, so it is also the most effective treatment program for office workers to obtain beauty as well.

★ Compared with the Erbium laser (2940nm), this cosmetology system has the merit of deep stimulate to the tissue and short treatment duration.

★ Need no additional consumables


Application:

★ To eliminate the wrinkle, fine lines, scar, ease forehead wrinkle, to improve large pore, to thicken dermal layer

★ To improve skin pigmentation such as chloasma, age pigment and fleck

★ To treat the acne, acne scars, verruca, naevus, etc

★ To improve lighting aging skin


Before & After Images:


Applicable People:

★ Office workers who bear heavy pressure without vacation

★ Full-time housewives who keep tedious housework under tense rhythm of life.

★ All people desiring for beauty and youth.


Unique Advantages:

★ This cosmetology system equipped with high-quality unimodal laser, with good quality light beam and small light spot, less heat damage and better treatment result.

★ Unique laser manufacturing technology and laser power driving technology, make sure long time and stable emission of laser pulse. Thus make sure the light point in scanning figure even, no “lost point”, “Skipped point”, with good treatment result.

★ This cosmetology system equipped with high speed scanner and high-quality unimodal laser, adopted advanced super pulse emission technology which can acts upon the skin in a very short time (Each laser point composed by numbers of laser pulses, the minimum laser pulse width is up to 0.1ms). Each laser pulse has a very high peak effect by 10 millijoule to dozens of millijoule energy. Compared with the conventional emission which requires several hundred mJ energy, heat damage of KL CO2 cosmetology system is one fifth or tenth.

★ With micro scanner (weight less than 160g). The scanner can be connected with scalpel. The operator can switch into different functions by pressing the keys in the operation menu without removing and installing the scanner. It is easy to operate
