1.Laser Unit: RF CO2 laser
2.Wavelength: 10.6μm
3.Laser working mode: scanning mode, super pulse mode
4.Output energy/power: scanning mode 2.5-225mJ, super pulse mode 0.1-60W
5.Max. scanning area: 20*20mm2(Normal handpiece)
6.Max. scanning area: 30*30mm2(Optional big spot handpiece)
7.Min. spot size: 0.1mm
8.Max. spot size:1.8±0.2mm
9.Min. pulse width: 0.01ms

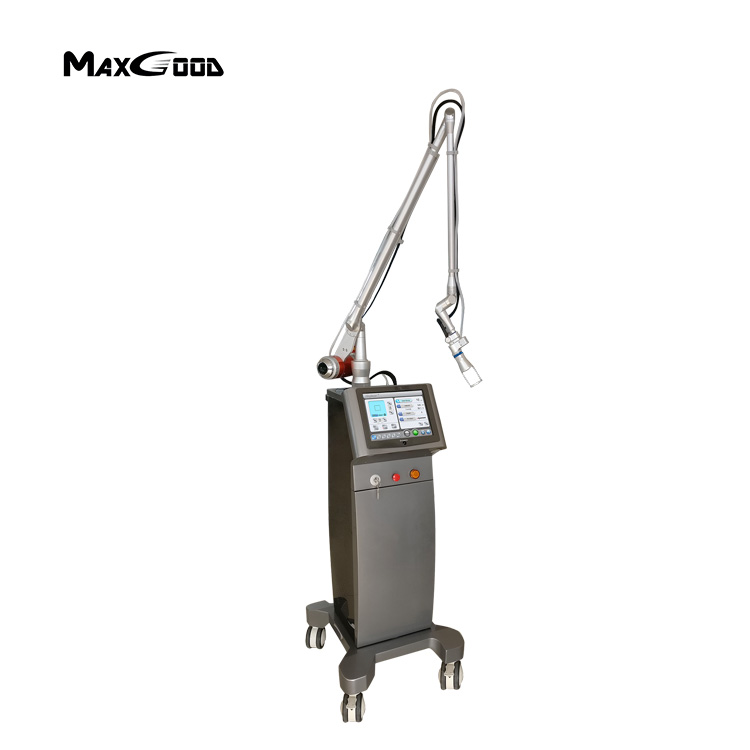

Powerful 60W RF tube CO2 fractional Laser acne scar removal machine with big spot
Specification :
Wavelength: | 10600nm |
Output power: | 60w |
Spot size: | 0.1mm |
Aiming beam: | Red semiconductor laser (635nm, less than 5mw) |
Beam transport device: | Articulated arm with 7-joint and balance weight |
Working mode: | scanning mode, super pulse mode |
Scan scope: | Max 20mmx20mm2(Normal handpiece) |
Energy: | scanning mode 2.5-225mJ, super pulse mode 0.1-60W |
Min. pulse width: | 0.01ms |
Features:
CO2 fractional laser retains the features of convenience, stabilization and high efficiency, meanwhile has the extension features of 60W high power and 2mm big spot size. It is more effective for treating scars.
Applications:
Under fractional mode:
1,Removing acne and scar, especially for the acne scar, postoperative scar, frostbite scar.
2,Removing tiny wrinkles, improving deeper forehead wrinkles and stretch marks.
3, Improving chloasma, treating skin superficial pigment diseases, such as freckles, coffee spot, age pigment
4, Improving light aging skin and rough pores, thickening dermis.
5, Treating nail fungus, plantar warts, ingrown nails, etc.
Under super pulse mode:
Cutting skin vegetations: such as warts, nevus, seborrheic keratosis, sebaceous adenoma, syringomas, etc.

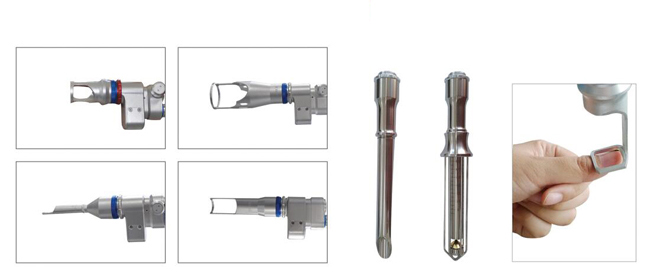

Handpiece:
Treatment Effect:
