1.Wavelength: 532nm&1064nm standard 585/650nm optional
2.Maximum Energy: 1500mj
3.Spot diameter: 2 -10mm
4.Pulse width: 600ps
5.Frequency: 1-10HZ

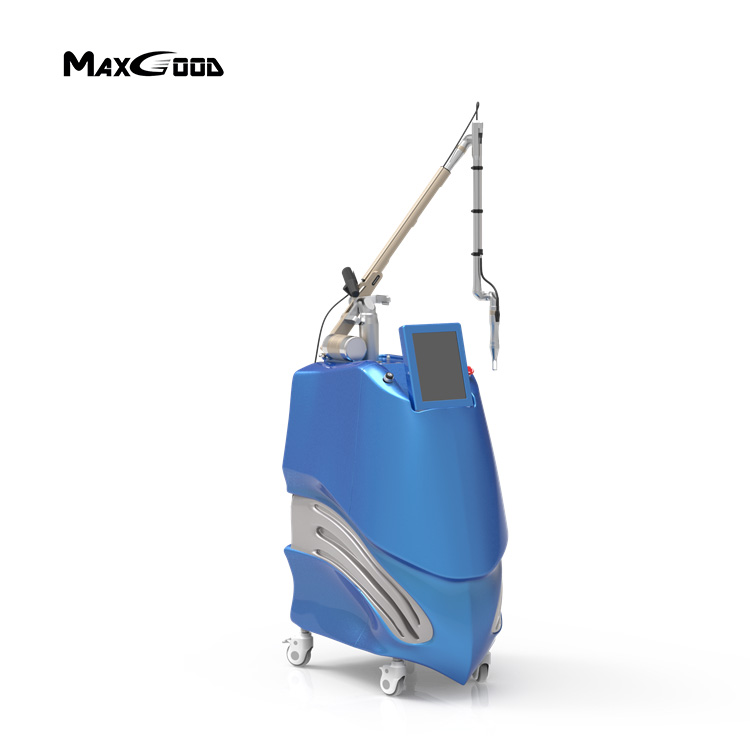

Professional picosecond picosure laser tattoo removal machine with Medical CE certification
Specification:
Wavelength | 1064nm 532nm Standard; 585nm,650nm,755nm Optional |
Energy | 10.8~81.1(10mm); 13.3~100.2(9mm); 16.9~126.8(8mm); 22.0~165.6(7mm); 30.0~225.4(6mm); 43.2~324.6(5mm); 67.6~507.3(4mm); 120.2~901.8(3mm); 270.5~2029.2(2mm) |
Peak Power | 1064nm 1GW; 532nm 0.5GW |
Frequency | 1~10Hz |
Zoom Spot Size | 2~10mm Adjustable |
Pulse Width | 600ps |
Beam Profile | Top Hat Beam |
Light Guiding System | South Koera 7 joints Arm |
Aiming Beam | Diode 655 nm (Red), Adjustable Brightness |
Voltage | AC220v±10% 50Hz,110v±10% 60Hz |
Net Weight | 85KG |
Dimension | 68*79*120cm |
Theory:
The PicoSecond Laser uses ultra-short pulses (one trillionth of a second in length) to hit the melanin with a great pressure, the melanin shatters into tiny dust-like particles. Because the particles are so small,
they are more readily absorbed and eliminated by the body. It is a quick and easy non-surgical ,non-invasive laser skin treamtent for the body.
The advantages of Picosecond laser compared with traditional lasers
More Effective and Faster Result:
Picosecond laser is 100 times faster than traditional nanosecond technology, as a result, the picosecond laser system breaks up tattoos faster than traditional lasers. Picosecond laser will shatter even tiny ink particles making it easier for the body to clear the tattoo ink.
Minimized Risk and Minimal Discomfort: The ultra-short pulses also optimize the delivery of energy to the targeted ink particles ensuring the ink is effectively treated, while the least amount of heat gets transferred into the skin, you’ll feel minimal discomfort throughout the procedure.
Applications
1.Melasma
2.Epidermal nevi
3.Tattoo removal
4. Acne scars
5.Non-ablative resurfacing
6.Pigmented and vascular lesions
7.freckle, sunburn spot and chloasmaSkin whitening and wrinkle removal etc
Advantages:
Flat HAT BEAM Output
More effective power, thermal damage you won’t Engineered for performance, the picolaser FM-PS’ beam profile and power options ensure that the energy
is delivered efficiently to maximize effect while minimizing damage to surrounding tissue.
EASY Work And Humanized
The picolaser FM-PS was built with the physician in mind and includes a user-friendly system, user programmable buttons for personal parameters, auto-detected handpieces and adjustable aiming beam. The system even helps ensure that it stays up and running with its built-in auto-calibration and self-restoration functions.
Behind THE Advanced Technlolgy
The robust indutry quality control has a long list of features that ensure it is a cut above the rest
• Self-designed modules parts ;Full 90% ABS Material of case
• Full Metal structure ,resistance to strike and keep high stability
• Original Korea Lab Laser joints Arm optimize polarized light
• Industry level full metal laser generator firmed parts
