Power: 30W
Wavelength :980nm
Frequency :1-5Hz
pulse width :1-200ms
Output mode: Fiber
TFT touch screen :8inch
Energy: 1-30W
Dimension: 40cm*32cm*32cm
Weight :18KG

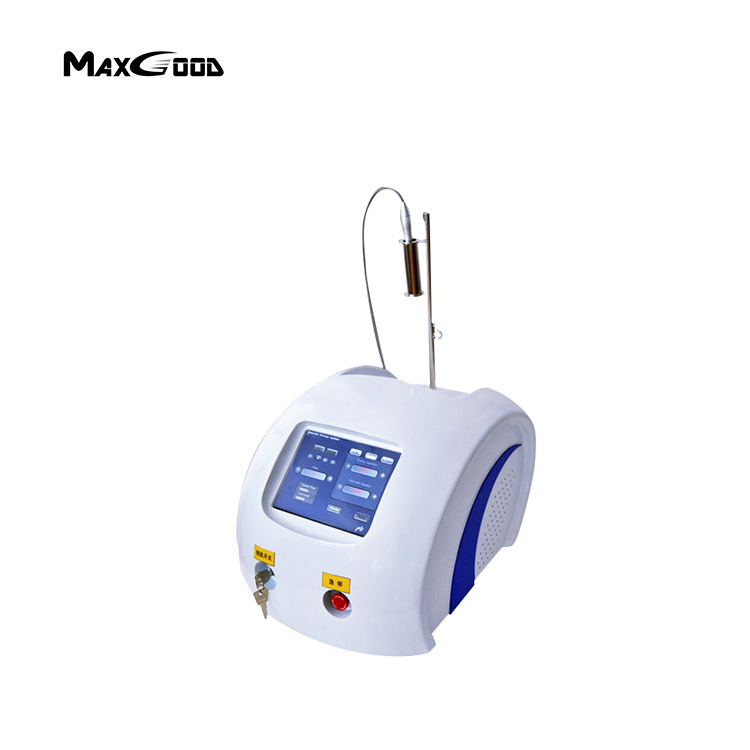

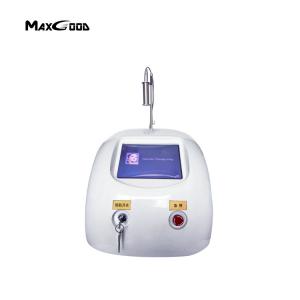

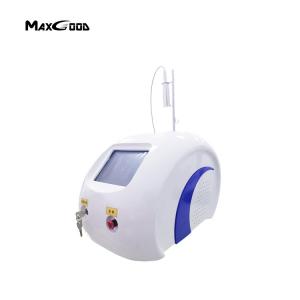

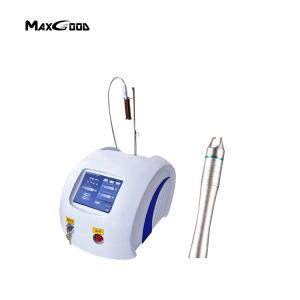

30W good effective 980nm diode vascular removal spider vein removal 980nm laser machine
Specification:
Input voltage | 220V-50HZ/110V-60HZ 5A |
power | 1-30W |
wavelength | 980nm |
frequency | 1-5hz |
pulse width | 1-200ms |
laser power | 30w |
Output mode | fiber |
TFT touch screen | 8 Inch |
Dimensions | 40*32*32cm |
gross weight | 18kg |
Theory:
(1). 980nm laser is the optimum absorption spectrum of Porphyrin vascular cells. Vascular cells absorb the high-energy laser of 980nm wavelength, solidification occurs, and finally dissipated.

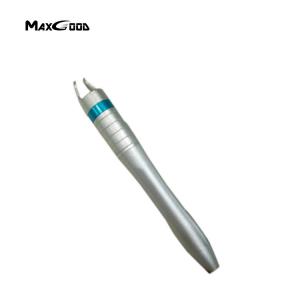

(2). To overcome the traditional laser treatment redness large area of burning the skin, professional design hand-piece, enabling the 980nm laser beam is focused onto a 0.2-0.5mm diameter range, in order to enable more focused energy to reach the target tissue, while avoiding burn the surrounding skin tissue.
(3). Laser can stimulate the dermal collagen growth while vascular treatment, increase epidermal thickness and density, so that the small blood vessels are no longer exposed, at the same time, the skin's elasticity and resistance is also significantly enhanced.
(4).The Laser system based on the thermal action of the laser. The transcutaneous irradiation (with a penetration of 1 to 2 mm in the tissue) causes tissue selective absorption by hemeglobin (hemoglobin is the main target of the laser).
Application:
1.Vascular removal: Face and arms /Legs and the whole body
2.Pigment lesion treatment :speckle
3.Age spots/sun burn/pigmentation
4.Intradermal nevus ,flat wart ,fat granule
5.Blood clots removal
Advantages:
1.The advantaged laser technology for red blood veins /vascular /spider veins removal in contrast with high frequency in the market
2.1-10W adjustable energy to satisfy different requirements
Three modes:CW Pulse &Pulse and Single for optional
3.Short time operation/no injury /no bleeding /no burning/no redness or scar
4.The obvious effectiveness:Only one or two treatment are required,energy is well focus into 0.2-0.5mm spot.
