Customized color portable professional ce approved best quality 808nm diode laser hair removal machine for beauty salon and clinic

HR-01

OVERVIEW:

1.Laser Power:600W
2.Input Power：1800W
3.Energy:10-120J/cm2
4.Width:5-400ms
5.Spot size:12*20mm
6.Frequency:1-10HZ
7.Cooling system:Semiconductor+built-in water+Air cooling triple cooling system

Customized color portable professional ce approved best quality 808nm diode laser hair removal machine for beauty salon and clinic

Specification:

Laser type	diode laser
wavelength	808 nm
Output Mode	pulse output
Control Method	Touch control
Screen Size	8.4 Inch
Spot size	12mm*20mm
Energy density	48~168J ,20~70J/cm2 (Deviation≤±2%)
Pulse width range	5-400ms
Frequency	1-10HZ
Light spot surface temperature	0-30°C
Cooling System	Semiconductor+built-in water+Air Cooling triple cooling systems
Dimension(cm)	704447
Net weight	18kg
Fuse specification	Ø5×25 10A
Input Power	1800W
Input voltage	AC220V,AC110v

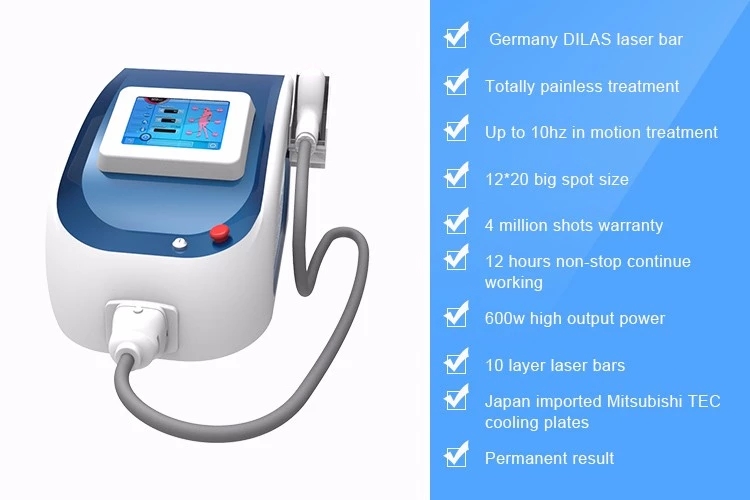

Advantage：

1. Germany DILAS laser bar

2. Totally painless treatment,permanent result

3. Up to 10hz in motion treatment

4. 12*20 big spot size

5. 4 million shots warranty

6. 12 hours non-stop continue working

7. 600w high output power

8. 10 layer laser bars

9. Japan imported Mitsubishi TEC cooling plates

10.3 years warranty

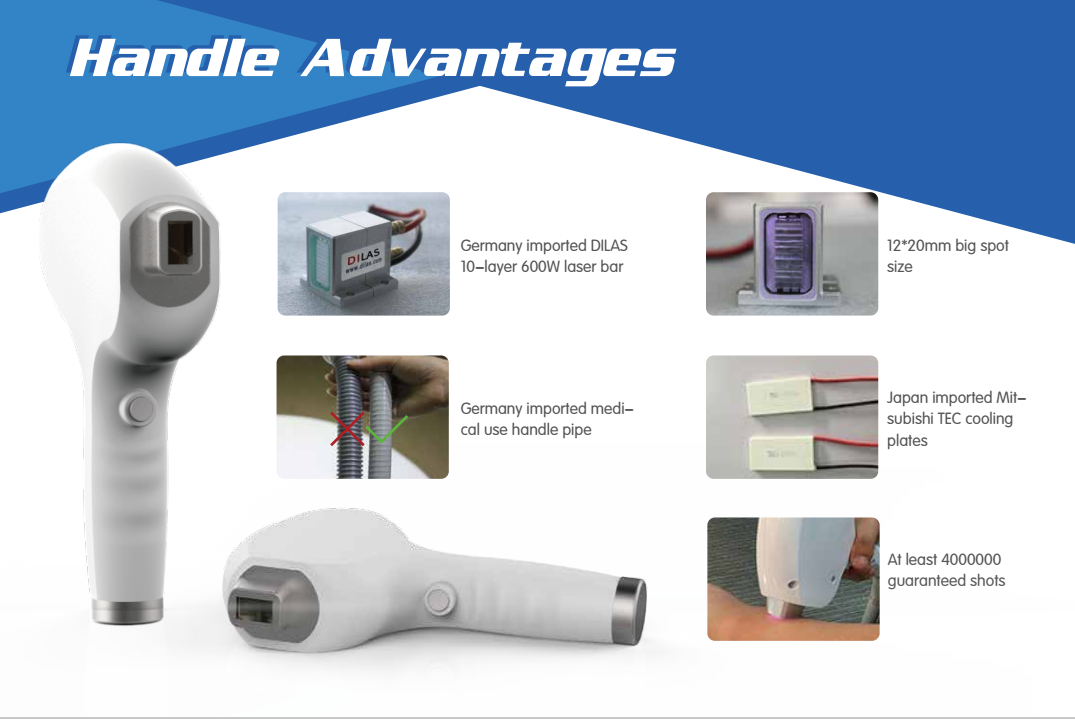

A qualified handlepiece decide the treatment results ; process ; using lifetime direcetly .

10 germany "dilas" laser bar inside . 600w
Spot size=12mm*20mm=2.4cm²
Excellent peltier touch cooling

Handle advantage.png

Cooling decide the continues working time and effect treatment results directly .

Toppest cooling system can continues working 12 hours

Semiconductor peltier elements 2 pieces 40*40mm inside the handle
60 meter high pressure vane pump fast water circulation
Wind 2 DC 12 V power fan with Copper radiator

Hair removal process?

1. Cut or shave hair to 1-2mm or ask patients to shave at home 2-3 days before treatment.

2. Clear treatment area.

3. Turn on machine, adjust the parameter, set it to ‘standby’ .

4. Put cooling gel on treatment area about 2mm.

5. Wear protect goggles for patient and operator.

6. Shot the treatment area, let the crystal tip to touch cooling gel, You are permitted to have 1/3 overlapping on treatment area.

7. Wipe off cooling gel after treatment and clear treatment area with cooling water. If patients feel warm or hot, you may put ice bag on treatment area until heat disappear.
