Laser type :Semiconductor laser(diode laser)
wavelength:808 nm, 755nm, 1064nm
Output Mode:pulse output
Control Method:Touch control
Screen Size:10.4 Inch
Spot size:12mm*20mm, 2.4cm2
Energy density:48~168J, 20~70J/cm2 (Deviation≤±2%)
Pulse width range:5-400ms
Frequency:1-10HZ
Light spot surface temperature:0-30°C
Cooling System:Semiconductor+built-in water+Air Cooling triple cooling systems
Dimension(cm):42×39×98
Net weight:38kg
Fuse specification:Ø5×25 10A
Input Power:2500W
Output Power:800W

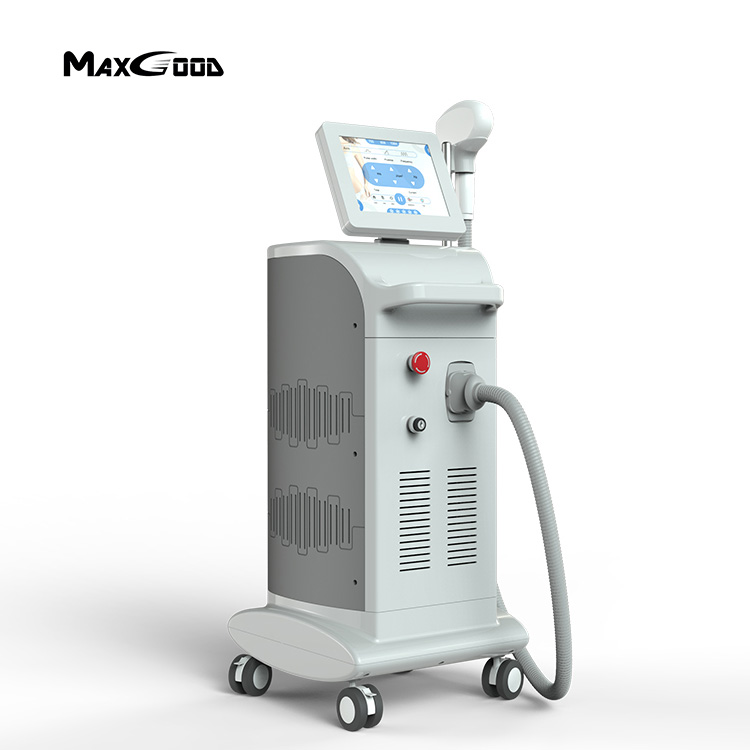

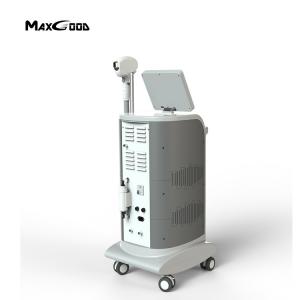

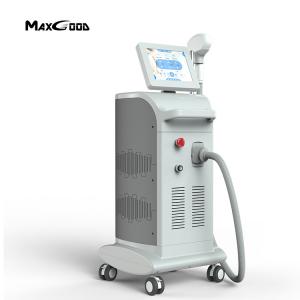

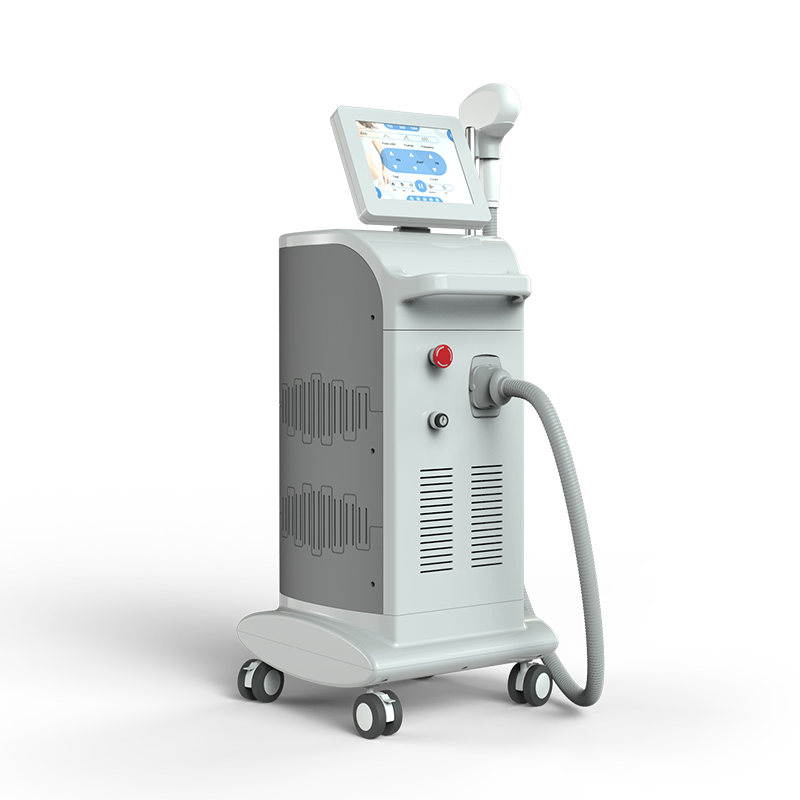

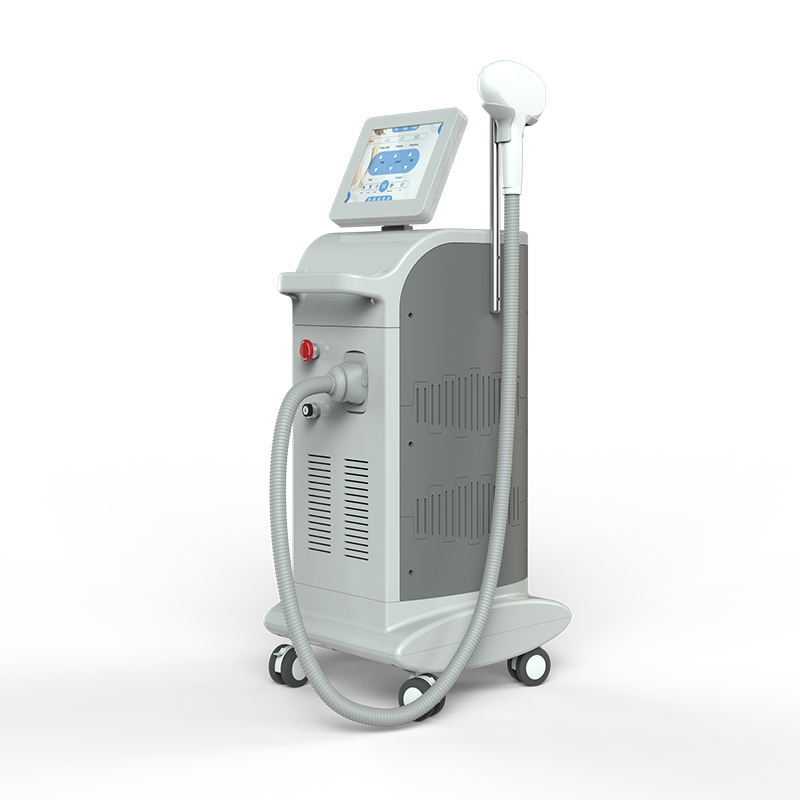

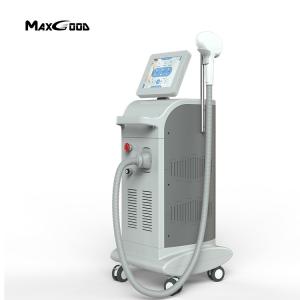

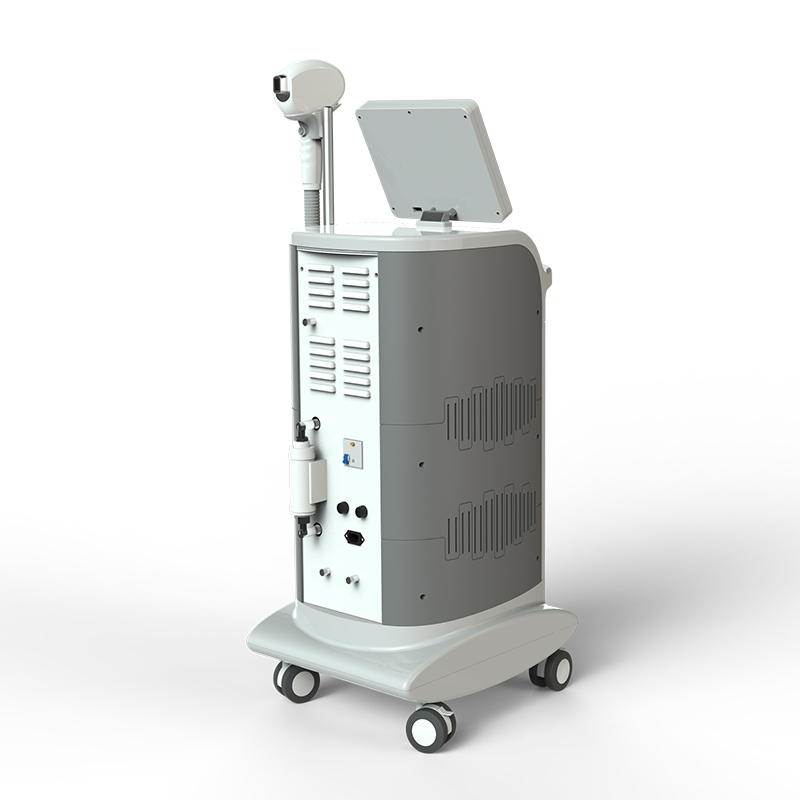

Professional ice soprano laser diode device hair removal triple wave medical laser on sale
Specification:
Laser type | Semiconductor laser(diode laser) |
wavelength | 808 nm, 755nm, 1064nm |
Output Mode | pulse output |
Control Method | Touch control |
Screen Size | 10.4 Inch |
Spot size | 12mm*20mm, 2.4cm2 |
Energy density | 48~168J, 20~70J/cm2 (Deviation≤±2%) |
Pulse width range | 5-400ms |
Frequency | 1-10HZ |
Light spot surface temperature | 0-30°C |
Cooling System | Semiconductor+built-in water+Air Cooling triple cooling systems |
Dimension(cm) | 42×39×98 |
Net weight | 38kg |
Fuse specification | Ø5×25 10A |
Input Power | 2500W |
Output Power | 800W |
Input voltage | AC220V±10% 10A 50HZ , 110v±10% 10A 60HZ |
Treatment principle:
Diode laser hair removal technology is based on the selective dynamics of light and heat. The laser goes through the skin surface to reach the root of hair follicles, light can be absorbed and converted into heat damaged hair follicle tissue. So that hair loss regeneration without injury surrounding tissue. With slight pain, this is the most the safest, quick, and permanent technique for hair removal now .
Application:
755nm, most effective on pale skin and not safe on darker skin at effective settings.
1064nm, made for treating darker and black skin types, though effective on all skin types.
808nm ,most effective for pale to medium and darker type skin.
All parts of the body, such as airline,liphair, whiskers, armpit hair, body hair, bikini hair.
Advantages:
1. Germany import 3 wavelength DILAS 10 layer laser bars
2. Totally painless treatment,permanent result
3. Up to 10hz in motion treatment, "IN-Motion" intelligent mode
4. 12*20 big spot size
5. 4 million shots warranty
6. 24 hours non-stop continue working
7. 800w high output power
8. Japan imported Mitsubishi TEC cooling plates
9. Germany imported filter
10. 2500w strong power supply
Tec cooling:
TEC(Thermo- electric cooling) cooling system the best stable cooling system a perfect macth for laser machines, protecting Laser bar and increasing the continuous working period of machine to 24 hours continuous work. Preventing the burning risks.
Humanized Operation system:
--Open choose wavelength 755 or 808 or 1064
--choose men or women
--choose the treatment area
--adjust energy, frequence, pulse width
--start working
All suggested parameter settled well . New user can be skilled on it easily .
Hair removal process?
1. Cut or shave hair to 1-2mm or ask patients to shave at home 2-3 days before treatment.
2. Clear treatment area.
3. Turn on machine, adjust the parameter, set it to ‘standby’ .
4. Put cooling gel on treatment area about 2mm.
5. Wear protect glasses for patient and operator.
6. Shot the treatment area, let the crystal tip closely touch cooling gel, permitted to have 1/3 overlapping on treatment area.
7. Wipe off cooling gel after treatment and clear treatment area with cooling water. If patients feel warm or hot, you may put ice bag on treatment area until heat disappear.
